Solar Hybrid Inverter Mppt 3KW IP65

Price: Negotiable
Model: 97.6%
Power: 3KW
Certification: CE, ISO
Weight: 7.2KG
Dimensions: 265*310*140mm
Display:
Cooling:
Protection Class: IP65
Conversion Efficiency: 97.6%
Operating Temperature: -40 ~ +65°C
Minimum Order Quantity: 1 SET
Trading Method: FOB/CIF/EXW Xiamen Port
Delivery Time: 90 Days
Place of Origin: CHINA.

Get Quote

The BLD Solar single phase hybrid inverter is a device used in solar power systems to convert the DC (direct current) energy generated by solar panels into AC (alternating current) energy that can be used to power household appliances and grid-connected devices.


Technical Data :

AC power rating

3000W

European efficiency

97.6%

Number of feed-in phases

1

Number of MPP trackers

1

Dimensions

265*310*140mm

Protection Class

IP65

Features:

1. Dual MPPT: Allows for independent tracking and optimization of multiple strings of solar panels, improving system performance and efficiency.

2. Battery Backup: Provides the capability to store excess solar energy in batteries for use during power outages or when solar generation is low.

3. Grid-Tie Capability: Allows the system to synchronize with the utility grid, enabling the injection of excess solar energy back into the grid and potentially earning credits or reducing electricity bills.

4. Pure Sine Wave Output: Produces a clean and stable AC power output, suitable for powering sensitive electronic devices, ensuring their proper functioning and longevity.

5. LCD Display: Provides real-time monitoring of system status, including solar generation, battery charge levels, power consumption, and grid connection status.

6. Communication Options: Some inverters may offer Wi-Fi, Ethernet, or monitoring software compatibility, allowing users to remotely monitor and control their solar system.







3KW Mppt Hybrid  applicatons:

1. Residential Solar Systems: The 3KW hybrid inverter is suitable for residential solar installations, where it can efficiently convert the DC energy generated by solar panels into AC power for household use. It can also store excess energy in batteries for use during power outages or periods of low solar generation.

2. Off-Grid Systems: The hybrid inverter can be used in off-grid systems where there is no access to the utility grid. It can convert solar energy into usable AC power for running appliances and charging batteries to provide electricity during times of low solar generation.
3. Grid-Tied Systems: The 3KW hybrid inverter can be used in grid-tied systems, where it allows excess energy generated by solar panels to be fed back into the grid. This can help offset energy consumption and potentially earn net metering credits or reduce electricity bills.
4. Hybrid Energy Systems: The hybrid inverter can be integrated with other renewable energy sources, such as wind turbines or micro-hydro generators, to create a hybrid energy system. It can manage the power generated from both solar and other sources, efficiently utilizing available energy and maximizing energy independence.
5. Small-Scale Commercial Systems: The 3KW hybrid inverter is also suitable for small-scale commercial solar installations, such as office buildings, shops, or small businesses. It can provide reliable power generation, energy storage capabilities, and grid-tie functionality to optimize energy usage and reduce electricity costs.

3KW Mppt Hybrid key functions:

1. Inverter Function: Converts DC power generated by solar panels into usable AC power for operating household appliances and feeding back excess energy into the grid.
2. Battery Charging: Charges the connected batteries with solar energy during daylight hours for use during the night or when solar generation is low.
3. Battery Discharging: Provides power from the batteries during times when solar generation is insufficient or during power outages.
4. Grid-tie Capability: Allows the system to connect to the utility grid, enabling the injection of excess solar energy back into the grid and earning net metering credits.
5. Maximum Power Point Tracking (MPPT): Optimizes the performance of the solar panels by continuously adjusting the voltage and current to extract the maximum power available under varying weather conditions.
6. Smart Energy Management: Some models offer advanced energy management features such as load shifting, time-of-use optimization, and prioritizing the use of solar energy over grid power to maximize self-consumption and minimize electricity bills.

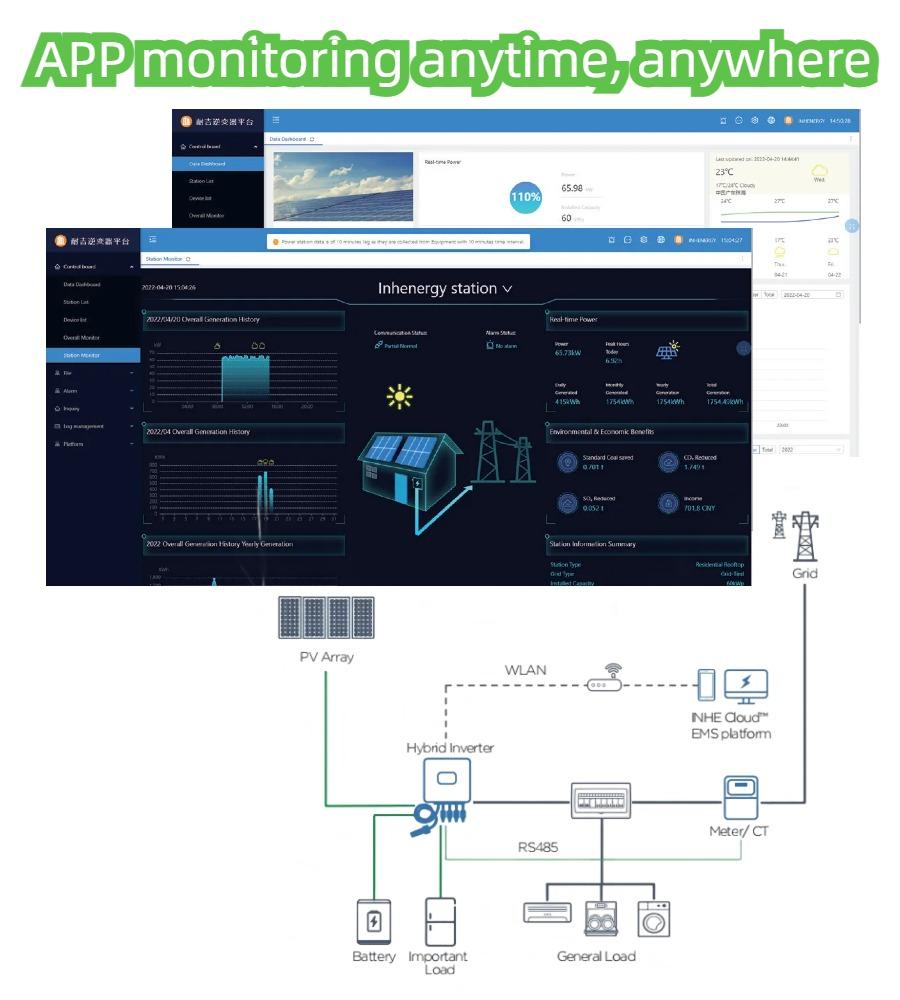

7. Monitoring and Control: Provides real-time monitoring of system performance, including solar generation, energy consumption, battery status, and grid connection, allowing users to track and optimize energy usage.
8. Safety Protections: Includes various protection mechanisms such as overvoltage protection, overload protection, short circuit protection, and overheating protection to ensure the safety and longevity of the inverter and connected devices.




Related Resource


Solar Hybrid Inverter Mppt 3KW IP65How It Work
Automatic Switching
The inverter automatically switches between battery power, and grid power based on the availability and demand for electricity, ensuring a continuous power supply.
Grid-Tied Operation
In addition to functioning off-grid with battery storage, the hybrid inverter can also operate in a grid-tied mode, where excess solar power can be fed back into the utility grid.
Dual Power Input Capability
The hybrid inverter can accept power from both solar panels and the utility grid, allowing for seamless transition between solar power and grid power as needed.
Protection and Safety Features
Hybrid inverters are equipped with various safety features including overload protection, short circuit protection, and surge protection.
